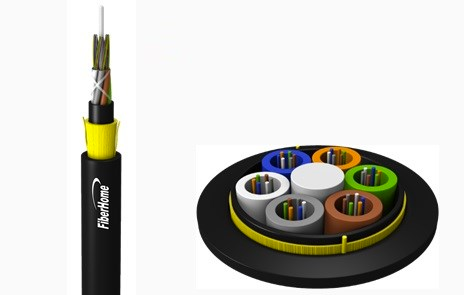

ADSS (All Dielectric Self-supporting Cable)
Aerial Optical Fiber Cable
The loose tubes are made of high modulus plastics (PBT) and filled with a water resistant filling gel. Loose tubes are stranded around the non-metallic central strength member (FRP), cable core is filled with cable filling compound. Polyethylene (PE) extruded as inner sheath, and then aramid yarns or glass yarns are applied over inner sheath to enhance tensile strength for special application. The cable is completed with PE outer sheath.
Structure:
- Loose tube: PP or other materials available
- Water blocking materials for loose tube: water blocking yarn available
- Water blocking materials for cable core: water blocking tape available
- Outer sheath: AT materials available
Features:
- All dielectric, anti-lightning, anti-electromagnetic interference
- All section water blocking
- Excellent transmission, mechanical and environmental performance
- Easy installation, easy maintenance
- Lifespan over 30 years
Applications:
- Aerial installation
- Electrical system or frequently lightning areas
Installation performance
- Min. bend radius: installation 25D, operation 12.5D
- Temperature range: storage -40～+70℃, installation -30～+70℃, operation -40～+70℃
