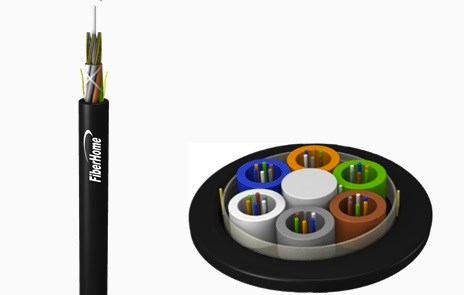

GYCFY (Air-blown Microduct Cable)


Air-blown Optical Fiber Cable

The loose tubes are made of high modulus plastics (PBT) and filled with a water resistant filling gel. Loose tubes are stranded around non-metallic central strength member (FRP). Polyethylene (PE) is extruded as outer sheath.

Structure:

• Loose tube: PP or other materials available
• Water blocking materials for loose tube: water blocking yarn available
• Water blocking materials for cable core: water blocking tape available
• Outer sheath: Nylon available

Features:

• Small volume, light weight, high fiber density, save duct resources
• Low friction, high air blowing efficiency
• All dielectric, anti-lightning, anti-electromagnetic interference
• Easy maintenance, easy upgrading
• All section water blocking
• Excellent transmission, mechanical and environmental performance
• Lifespan over 30 years

Applications:


• Air-blown installation
• Backbone network and metro network
• Access network

Installation performance

• Min. bend radius: installation 20D, operation 10D
• Temperature range: storage -40～+70℃, installation -30～+70℃, operation -20～+70℃
