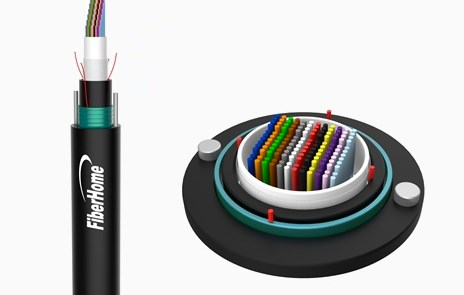

GYDXTW53 (Double Armored, Double Sheath, Central Loose Tube Ribbon Cable)
Direct-buried Optical Fiber Cable
The fiber ribbons are positioned in the loose tube. The tube is made of high modulus plastics (PBT) and filled with water resistant filling gel. The corrugated steel tape is longitudinally applied over the loose tube, polyethylene (PE) is extruded as inner sheath, then corrugated steel tape are longitudinally applied over the inner sheath, and combined with a durable PE outer sheath. Two parallel steel wires are embedded in two sides of PE outer sheath.
Structure:
- Loose tube: PP or other materials available
- Water blocking materials for loose tube: water blocking yarn available
- Water blocking materials for cable core: cable filling compound available
- Outer sheath: Anti-termite or flame retardant materials available
Features:
- High fiber density
- Superior crush resistance
- All section water blocking
- Excellent transmission, mechanical and environmental performance
- Easy installation, easy maintenance
- Lifespan over 30 years
Applications:
- Direct-buried installation
- Duct installation
- Backbone network and metro network
- Access network
- CATV network
Installation performance
- Min. bend radius: installation 25D, operation 12.5D
- Temperature range: storage -40～+70℃, installation -30～+70℃, operation -40～+70℃
