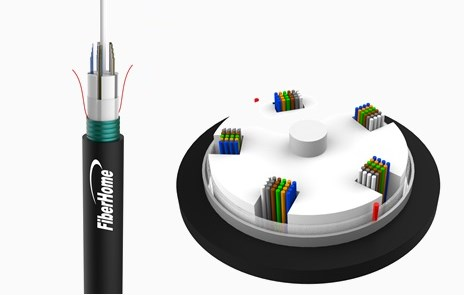

GYFDGA (Corrugated Aluminum Tape Armored, Slotted Core Ribbon Cable)

Direct-buried Optical Fiber Cable

The fiber ribbon is placed in a slotted core made of high-density polyethylene (HDPE), and the center of the slotted core is FRP. A layer of water blocking tape is wrapped around the slotted core. A corrugated aluminum tape is longitudinally applied over the slotted core, and extruded with a durable polyethylene (PE) sheath.

Structure:

• Central strength member: metal materials available
• Water blocking materials for cable core: cable filling compound available
• Outer sheath: Aluminium tape armor, steel tape armor, anti-termite or flame retardant materials available

Features:

• High fiber density
• Small volume, light weight, high fiber density
• All section water blocking
• Superior crush resistant
• Effective mid-span access
• Excellent transmission, mechanical and environmental performance
• Easy installation, easy maintenance
• Lifespan over 30 years

Applications:


• Direct-buried installation
• Duct installation
• Aerial installation
• Backbone network and metro network
• Access network

Installation performance

• Min. bend radius: installation 25D, operation 12.5D
• Temperature range: storage -40～+70℃, installation -30～+70℃, operation -40～+70℃
