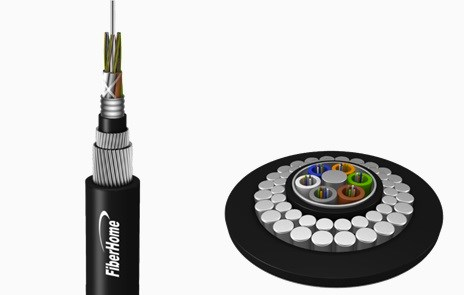

GYTA333 (Double-layer Steel Wire Armored, Corrugated Aluminum Tape Armored, Stranded Loose Tube Cable)
Underwater Optical Fiber Cable
The loose tubes are made of high modulus plastics (PBT) and filled with water resistant filling gel. Loose tubes are stranded around the metallic central strength member, cable core is filled with cable filling compound. The corrugated aluminum tape is longitudinally applied over the cable core, and combined with polyethylene (PE) inner sheath. Double layer galvanized steel wires are stranded around inner sheath, and then extruded with PE outer sheath.
Structure:
- Central strength member: FRP available
- Loose tube: PP or other materials available
- Water blocking materials for loose tube: water blocking yarn available
- Water blocking materials for cable core: water blocking tape available
- Outer sheath: aluminium tape armor, steel tape armor, anti-termite or flame retardant materials available
Features:
- Excellent transmission, mechanical and environmental performance
- Superior crush resistance and tensile strength performance
- Applicable to harsh environment
- Lifespan over 30 years
Applications:
- Underwater installation(lake, river etc.)
- Direct-buried installation
- Duct installation
- Backbone network and metro network
Installation performance
- Min. bend radius: installation 30D, operation 15D
- Temperature range: storage -40～+70℃, installation -30～+70℃, operation -40～+70℃
