GYXW (Parallel Steel Wire Strengthed Central Loose Tube Cable)


Duct Optical Fiber Cable

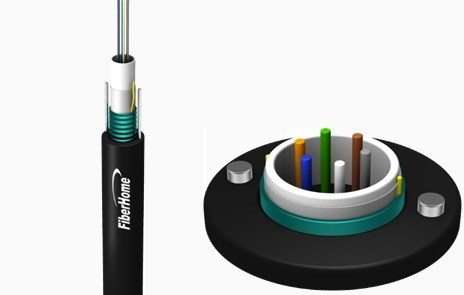

The loose tube is made of high modulus plastics (PBT) and filled with water resistant filling gel. The corrugated steel tape is longitudinally applied over the loose tube, and combined with a durable polyethylene (PE) sheath. Two parallel steel wires are embedded in the two sides of PE sheath.

Structure:

• Loose tube: PP or other materials available
• Water blocking materials for loose tube: water blocking yarn available
• Water blocking materials for cable core: cable filling compound available
• Outer sheath: Anti-termite or flame retardant materials available

Features:

• Small diameter, light weight, compact structure
• All section water blocking
• Flexible, superior crush resistance
• Excellent transmission, mechanical and environmental performance
• Easy installation, easy maintenance
• Lifespan over 30 years

Applications:

• Duct installation
• Access network

Installation performance

• Min. bend radius: installation 20D, operation 10D
• Temperature range: storage -40～+70℃, installation -30～+70℃, operation -40～+70℃
