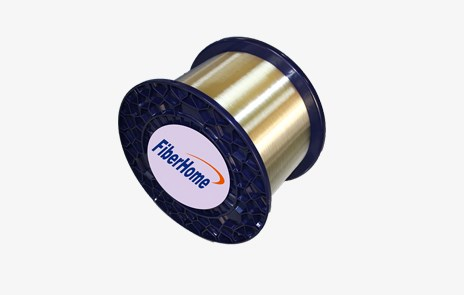

OM4 Multimode Fiber

A1a.3 (50/125μm)

FiberHome® OM4 MMF fiber is designed specifically for high speed local area network (LAN) , such as Gigabit or higher speeds Ethernet. With the extremely refined refractive index profile owing to the optimized PCVD process, FiberHome® OM4 MMF fiber eliminates the differential mode delay (DMD) phenomenon observed on the conventional fibers in Gigabit applications. Thus, there is no need for expensive CMC compensation. FiberHome® Next Generation MMF fibers satisfy the use at 850nm and 1300nm. The maximum link distances (up to 2000 meter) for Gigabit Ethernet system are the longest distances available in the world.

Charactersistics:

• Designed for use at 850nm and 1300nm
• Suit to applications in Gigabit Ethernet and higher bit-rat systems
• No need to use expensive DMD compensation in Gigabit Ethernet
• Enabling the longest link distances compared with congener products
• Good protection and excellent strip force stability

Applications:


• The outstanding optical performance of FiberHome® OM4 fiber makes it suitable for applications including not only high speed LAN but also lower bit-rate systems such as FDDI, Ethernet, ATM, etc.
• FiberHome® OM4 fibers support up to 2000 meter of link distances for lower bit-rate systems. A wide variety of light sources can be used in combination with FiberHome® OM4 MMF fibers, such as LEDs, 850nm VCSELs, 780nm CD lasers and 1300nm fabry-perot lasers.
• FiberHome® OM4 fiber is applicable in all cable types, including ribbon cable, loose tube stranded cable, slotted core cable, unitube cable and tight-buffer cable.

Norms

• FiberHome® OM4 MMF fiber complies with or exceeds ITU-T Recommendation G.651 and IEC 60793-2 type A1a optical fiber specification.
